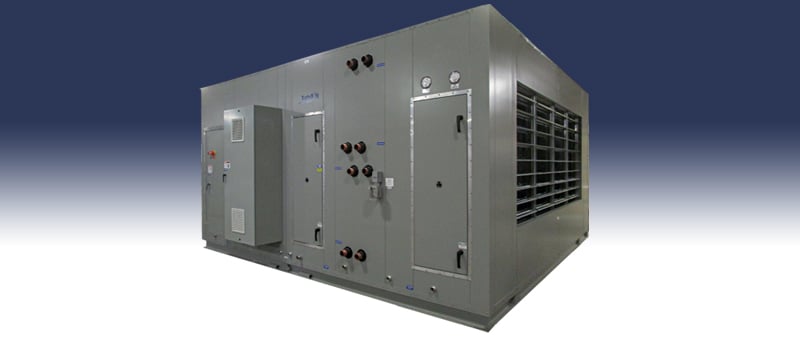

XeteX is the industry leader in providing innovative air handling solutions that meet demanding applications with performance and reliability. This featured project showcases a cutting-edge Indoor 90,000 CFM Custom Air Handling Unit (AHU) specifically designed for the unique needs of a semiconductor manufacturing application.
Designed in four sections for efficient transportation and installation.
High-efficiency nested AcoustiFlo fan array maximize airflow and sound dampening.
Specifications
- Model: XAH-90000-CW-FF
- Height: 176”
- Width: 276”
- Length: 239”
- Weight: 28,800 lbs
- Supply CFM: 90,000 CFM
- Cooling Capacity: 616 MBH
Construction
- Thermal break double wall construction
- 18ga galv paint exterior
- 20ga galv interior
- 3” injected foam panels
- Fully welded 1/8" aluminum tread plate floor with 2” upturn lip and floor drains
- Four-section split unit
- Two sections—main air tunnel
- Two sections—bottom discharge plenum
Other Features
- Motor removal I beams for enhanced maintenance efficiency
- Doors are equipped with testing ports
- Factory casing leakage and flood testing
- Casing leakage testing < 1% @ 10”
- Flood testing = 24 hr floor pan water leakage test
- Fully welded structural bottom discharge plenum
Components
A. 2” carbon filters
B. 4-inch MERV 13 filtration for the advanced air quality needs of an semiconductor manufacturing facility
C. Chilled Water with glycol coil
D. High efficiency nested AcoustiFlo fan array for sound dampening
E. Bottom supply discharge plenum, ensures efficient airflow distribution and optimal performance
