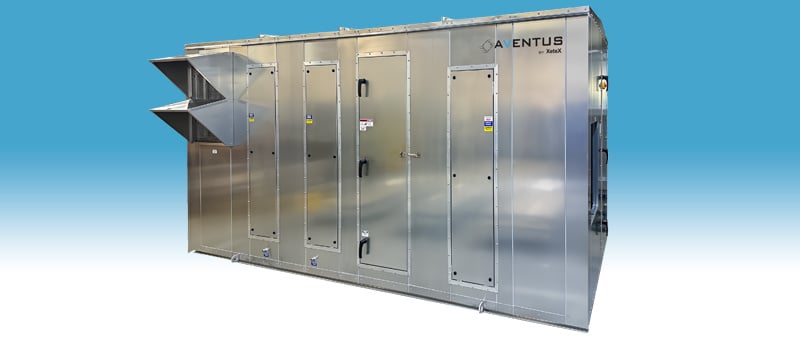

Specifically designed for a school, this AVENTUS semi-custom split-DOAS unit features a non-corrosive aluminum construction. It is engineered to provide 100% outdoor air and incorporates a sensible crossflow flat plate heat exchanger, which effectively transfers heat between air streams, thereby reducing energy costs and enhancing overall efficiency.
Additionally, this semi-custom split DOAS is equipped with highly efficient filters that significantly improve indoor air quality by capturing airborne particles and contaminants, creating a cleaner and safer environment for students and staff. The inclusion of hot water coils further ensure a comfortable indoor climate during colder months.
Performance
Model: AVT-EC-40-60-HW-RC
Dimensions: 95”H x 201”L x 76”W
Weight: 3,150 lbs
Supply CFM: 6,400 CFM
Energy Recovery: Sensible Crossflow Plate
Energy Effectiveness: Winter: 64.9% / Summer: 61.3%
Heat Type: Hot Water Coils
Heating Capacity: 306 MBH
Construction
- Outdoor unit
- Thermal break construction with 2” double wall casing and injected foam (R-value 14/in) insulation
- 0.063 aluminum outer casing
- 0.063 aluminum interior casing
- 6” c-channel structural aluminum base frame with welded lifting lugs
- 0.080 aluminum floor with 2” polyIso foam (R-value 6.0/in) insulation
- 304 stainless steel drain pan
Features
- Full unit controls with BACnetMS/TP
- Plumbing and electrical chase
- Modulating crossflow bypass damper with actuator
- SA Fan: EC motor with 1” spring vibration isolation
Components
A. OA 2” MERV 8 filters with aluminum filter rack
B. OA 4” MERV 13 filters with aluminum filter rack
C. Modulating crossflow bypass damper with actuator
D. Aluminum sensible crossflow plate heat exchanger
E. SA premium plenum fan
F. Hot water coil
G. RA 2” MERV 8 filters with aluminum filter rack
H. EA premium plenum fan
Learn more about AVENTUS semi-custom ERV, split DOAS and packaged DX DOAS units!
