AVENTUS Semi-Custom Split DOAS for an Auto Dealership

Designed specifically for an auto dealership, this semi-custom AVENTUS split-system Dedicated Outdoor Air System (DOAS) features 100% outdoor air.

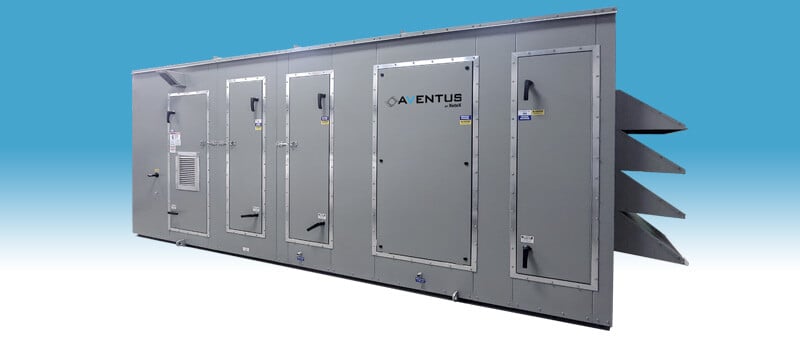

AVENTUS Split-DOAS for an Auto Dealership



At the heart of this system is an energy-efficient aluminum crossflow plate heat exchanger, which maximizes energy recovery by transferring heat between the incoming and outgoing air streams. This process significantly reduces energy consumption, making it an environmentally friendly choice.

Additionally, the system is equipped with high-efficiency filters throughout, ensuring that the air circulated within the dealership is clean and free from pollutants. To provide reliable heating, the system includes an indirect gas-fired furnace, which offers consistent and effective warmth during colder months, enhancing the comfort of both customers and staff.

PERFORMANCE

Model: AVT-DD-60-60-RT-BP-HI
Dimensions: 92”H x 235”L x 92”W
Weight: 7,600 lbs
Supply CFM: 7,220 CFM
Energy Recovery: Sensible Crossflow Plate
Energy Effectiveness: Winter: 77% / Summer: 62%
Heat Type: Indirect Gas Fired Furnace
Heating Capacity: 350 MBH

CONSTRUCTION

  • Outdoor unit
  • 2” double wall foam board (R-Value 12) insulation
    • 20ga galvanized steel outer casing with acrylic paint
    • 20ga galvanized steel interior casing
  • Welded 6” c-channel structural steel base frame with lifting lugs
  • 16ga galvanized steel floor with 2” polyIso foam (R-value 12) insulation

FEATURES

  • Aluminum sensible crossflow plate HX with bypass damper and actuator
  • SA and EA fans: EC motor with 1” spring vibration isolation
  • OA/EA galvanized mesh bird screen
  • Filter pressure switch for all filter banks
  • LED lights in fan and electrical sections
  • 120V GFI Service Outlet

COMPONENTS

A. OA 2-position damper with actuator
B. SA 2” MERV 8 filters with galvanized rack
C. SA 4” MERV 13 filters with galvanized rack
D. Crossflow bypass damper with actuator
E. Aluminum sensible crossflow plate HX
F. SA two premium plenum fans
G. 409 SS indirect gas heat
H. RA 2” MERV 8 filters with galvanized rack
I. Gravity relief exhaust damper
J. EA two premium plenum fans

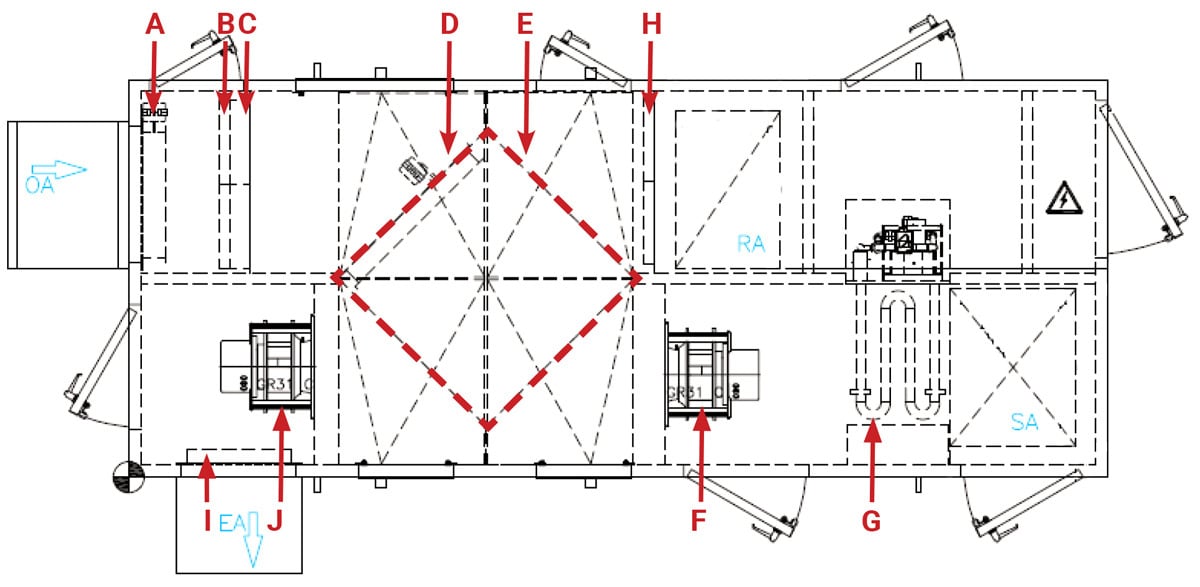

AVENTUS semi-custom split-DOAS drawing
