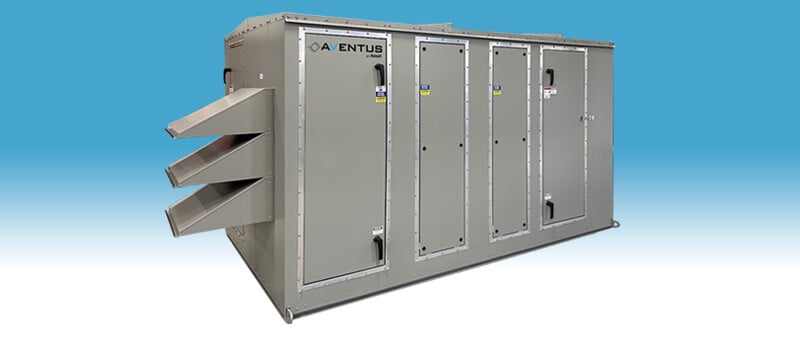

This AVENTUS by XeteX project showcases one of three semi-custom split-DOAS units for the hospitality industry and provides 10 tons of high efficiency cooling. Unique features include a VRF air source heat pump (provided by others and installed by XeteX), an 8” energy recovery wheel, and high-efficiency filters (OA/RA).
AVENTUS Semi-Custom Split DOAS Performance
Model: AVT-DC-1800-RT-DX-RC
Dimensions: 84”H x 182”L x 81”W
Weight: 5,800 lbs
Supply CFM: 4,610 CFM
Energy Recovery: Energy Wheel
Energy Effectiveness: Winter: 94% / Summer: 92%
Cooling Type: VRF DX ASHP
Cooling Capacity: 10 Tons
Construction
- Outdoor unit
- 2” double wall casing and polyIso foam (R-value 6.0/in) insulation
- 20ga galvanneal steel outer casing with acrylic paint
- 20ga galvanized steel interior casing
- 4” c-channel structural steel base frame with welded lifting lugs and acrylic paint
- 16ga galvanized steel floor with 2” (R-12) foam board panel insulation
Features
- Split-system VRF ASHP coil provided and installed by factory
- AIRotor 8” aluminum energy wheel with a VFD and rotation detector
- SA/EA EC motors
- SA/EA with airflow monitoring
- Galvanized steel coil casings

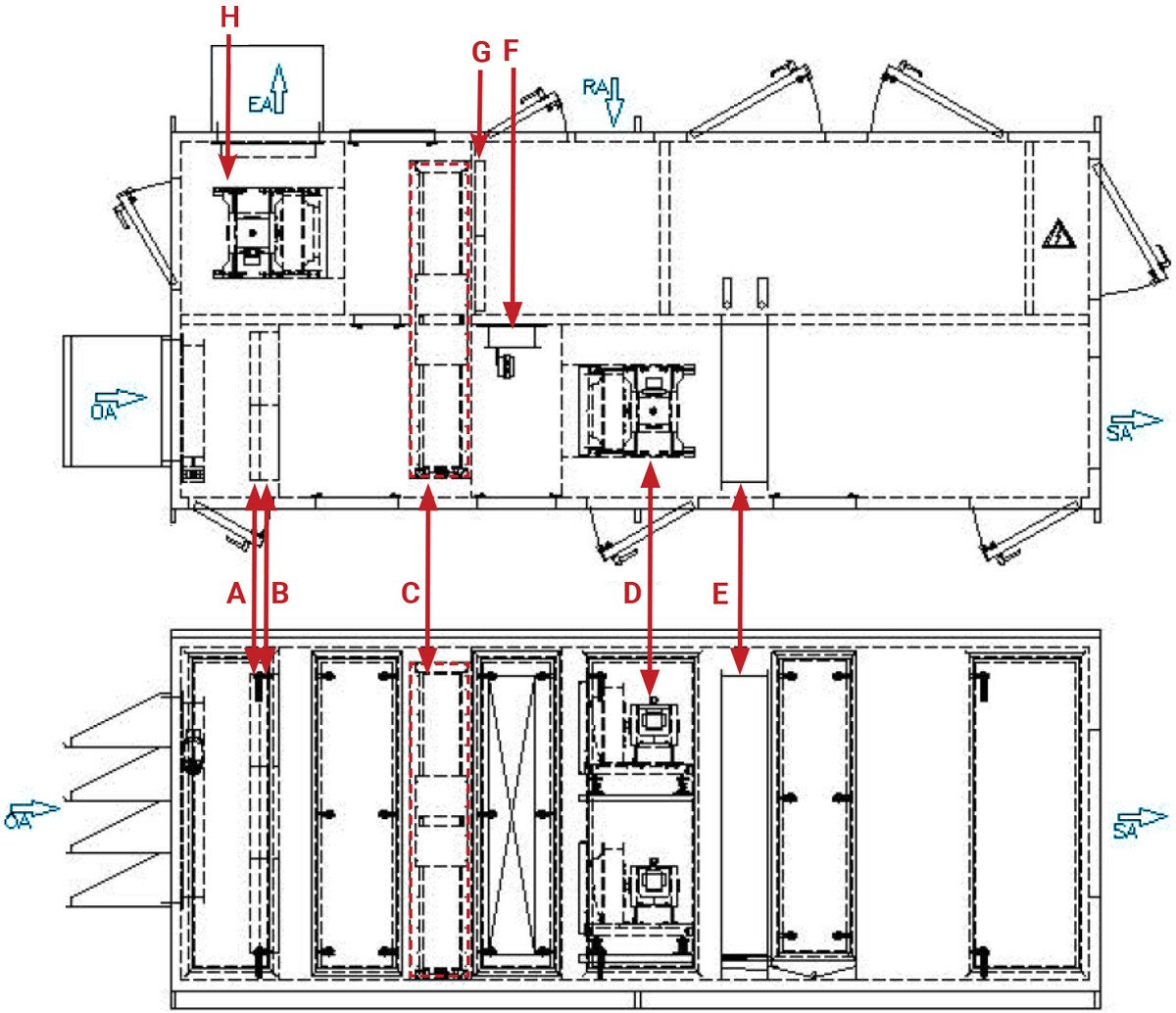

AVENTUS Semi-Custom Split DOAS Components
A. OA 2” MERV 8 filter galvanized filter rack
B. OA 4” MERV 13 filter galvanized filter rack
C. AIRotor 8” aluminum energy wheel with a VFD and rotation detector
D. SA fan
E. VRF ASHP coil
F. Recirculation damper
G. RA 2” MERV 8 filter galvanized filter rack
H. EA fan
