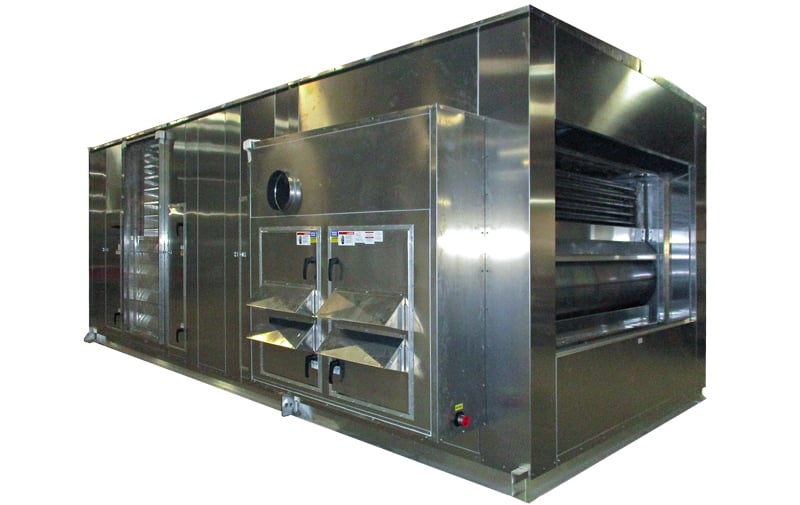

This featured XeteX project is a custom indoor Make Up Air Unit (MAU) specifically designed for a Military application. This custom MAU boasts a space-saving designed to suspend from the ceiling, saving valuable floor space. Yet its offers heavyweight features to withstand the harsh environment and demanding conditions and is equipped with energy recovery Wrap Around Heat Pipe technology.
Specifications
- Model: XHS-30-60-BP-CW-HW-FF
- Height: 61”
- Width: 66”
- Length: 190”
- Weight: 3,800 lbs
- Supply CFM: 4,700
- Cooling Capacity: 318 MBH
- Heating Capacity: 306 MBH Input
- Heat Pipe Effectiveness: 22% Pre-Cool / 23% Re-Heat
Construction
- Indoor unit
- Corrosion-resistant 0.063" aluminum exterior and interior for long-lasting performance in corrosive environments
- 2” Injected foam, thermal break panels
Other Features
- 304 stainless steel CW coil casing with epoxy coating providing additional corrosion resistance and durability
- Unit to be suspended from ceiling
Components
A. 2” MERV 8 pre filter
B. Heat Pipe—Pre-Cool
C. CW with glycol coil
D. Heat Pipe—Re-Heat
E. SA Direct Drive Blower
F. High Efficiency (90%) Indirect Fired Burner
