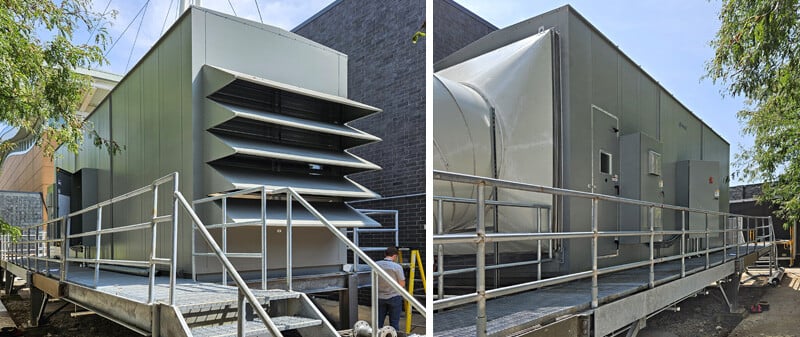

This XeteX project showcases a three-section split custom air handler for an athletic center. Unique performance features include a four-fan plenum array, 60K CFM, phenolic-coated HW and CW coils, and pre and post heat.
Performance
Model: XAH-60000-RT-CW-HW-RC
Dimensions: 150”H x 376”L x 116”W
Weight: 22,090 lbs
Supply CFM: 60,000 CFM
Heating Type: Hot Water Coil
Heating Capacity: Pre-heat: 3,634 MBH
Post-heat: 3,225 MBH
Cooling Type: Chilled Water Coil
Cooling Capacity: 2,147 MBH
Construction
- Outdoor three-section split unit
- 4” double wall thermal break construction with injected foam (R-value 28/in) insulation
- 18ga galvanneal steel outer casing with acrylic paint
- 22ga aluminum interior casing
- Welded 8” c-channel structural steel base frame with lifting lugs and acrylic paint
- 16ga aluminum floor with 4” PolyIso foam (R-value 6.0/in) insulation
- 304 SS drain pan
Features
- Factory mounted Carel DDC Controller programmed for full unit control
- Phenolic-coated HW and CW coils
- Coil rack for stacked coils
- SA four premium fan plenum array with PIEZO flow rings
Components
A. OA 2” MERV 8 filters
B. Pre-heat phenolic-coated HW coils
C. Phenolic-coated CW coils
D. Post-heat phenolic-coated HW coils
E. SA premium four-fan plenum array
F. SA 4” MERV 14 filters
G. Unit splits
