Explore this XeteX custom HVAC solution for a large-scale lithium-ion battery manufacturing facility. By focusing on precision, reliability, and energy efficiency, XeteX helps the manufacturing environment operate safely while effectively maintaining an ideal climate for high-quality battery production.

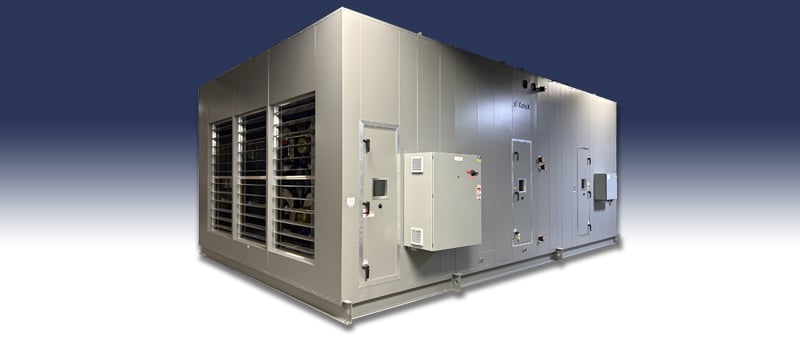

XeteX designed 15 custom air handlers to meet the unique demands of a large-scale lithium-ion battery manufacturer. Each unit is constructed with a three-section split design, allowing for easier transportation and indoor installation. A solid 10-inch welded structural steel base frame ensures stability while the Acoustiflo six-fan array with integral inlet dampers deliver a powerful 100K CFM and chilled water coils deliver 2,411 MBH.
PERFORMANCE
Model: XAH-100000-CW-RC
Dimensions: 144”H x 322”L x 216”W
Weight: 25,700 lbs
Supply CFM: 100,000 CFM
Cooling Type: Chilled Water Coil
Cooling Capacity: 2,411 MBH
CONSTRUCTION
- Indoor three-section split unit
- 3” double wall thermal break construction with injected foam (R-value 21) insulation
- 18ga galvanneal outer casing with acrylic paint
- 20ga galvanized interior casing
- 10” structural steel base frame with welded lifting lugs and acrylic paint
- 16ga galvanized unit floor with 2” injected foam (R-14) insulation
- 304 SS drain pan
FEATURES
- SA Acoustiflo fans with integral inlet dampers deliver a powerful 100K CFM and reduce the likelihood of hot spots within the manufacturing facility
- SA perforation liners for sound attenuation, ensuring a quieter working environment
- Piezo pressure port and fan backdraft damper
- Recirculation damper
- Modulating actuator

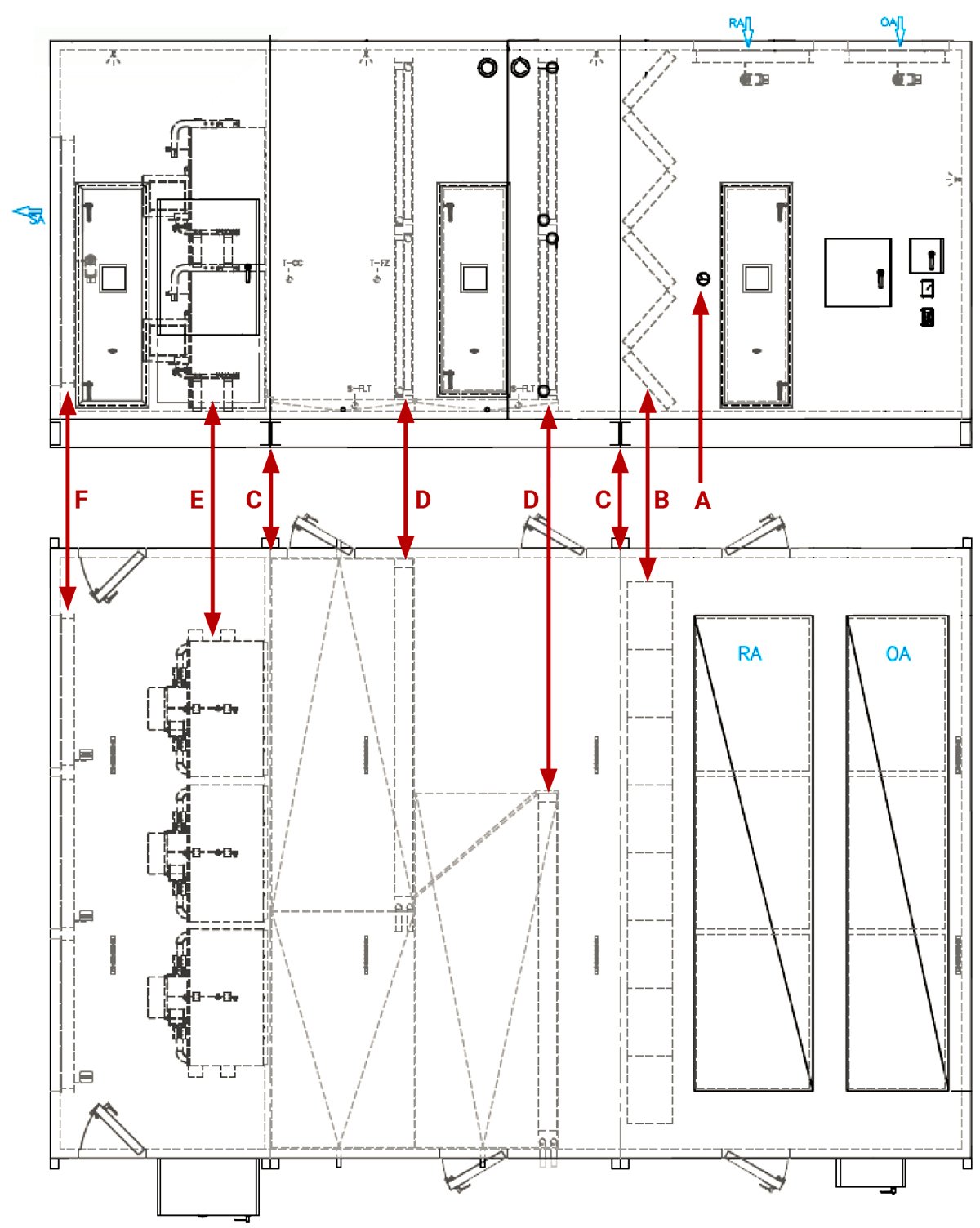

COMPONENTS
A. XeteX custom filter pressure gauge
B. OA 4” MERV 8 filters
C. Unit splits
D. Chilled water coils
E. SA Acoustiflo plenum six-fan array
F. SA fan back draft damper
In the rapidly evolving landscape of lithium-ion battery manufacturing, maintaining a safe, stable, and energy-efficient environment requires a reliable HVAC solution. Contact XeteX for your next project!
Learn more about XeteX Custom Air Handling Solutions!
