Discover how XeteX custom air handling solutions can elevate your HVAC systems! See inside this project showcasing a custom air handler featuring packaged DX and a humidifier designed for aerospace/defense manufacturing.

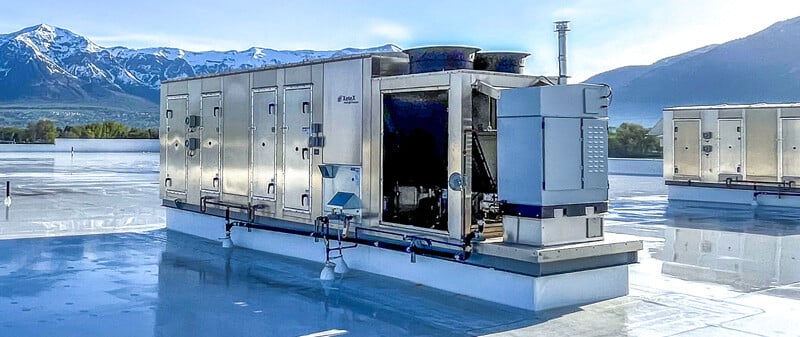

This XeteX project highlights one of six custom RTUs designed specifically for an aerospace and defense manufacturing application. Unique features include aluminum construction; packaged DX cooling; hot gas reheat; indirect fired gas furnace; and a humidifier manifold with an outdoor rated steam generator for year-round climate control.
Performance
Model: XAH-25000-RT-CD-HG-HI-HU-FF-AC
Dimensions: 124”H x 376”L x 104”W
Weight: 15,000 lbs
Supply CFM: 25,500 CFM
Heating Types: Hot Gas Reheat/Gas Fired Furnace
Heating Capacity: HGRH: 418 MBH
Gas Furnace: 768 MBH
Cooling Type: DX Coil
Cooling Capacity: 50 Tons
Construction
- Outdoor unit
- Thermal break construction with 4” double wall casing; injected foam
(R-value 28) insulation- 0.063 aluminum outer casing
- 0.063 aluminum interior casing
- 16ga galvanized steel with 2” PolyIso foam (R-value 6.0/in) insulation
- Welded 8” c-channel structural steel insulated frame with welded lifting lugs and acrylic paint
- 1/8” aluminum tread plate floor
- 304 SS drain pan
Features
- Factory mounted Carel DDC Controller programmed for full unit control
- Humidifiers manifold with outdoor rated steam generators
- Integral air-cooled section with multiple staged compressors with a digital lead
- Access door test ports
Components
A. OA 2” MERV 8
B. SA 12” MERV 14
C. Evaporator coil
D. Hot gas reheat coil
E. 409 SS indirect fired gas furnace
F. SA two premium plenum fan array
G. Gas heater
H. AC section
I. Gas humidifier generator
