With custom HVAC solutions, XeteX helps commercial and industrial buildings breathe better while achieving energy efficiency and climate control. See inside this community center natatorium with a corrosion-resistant design and an energy recovery heat pipe.

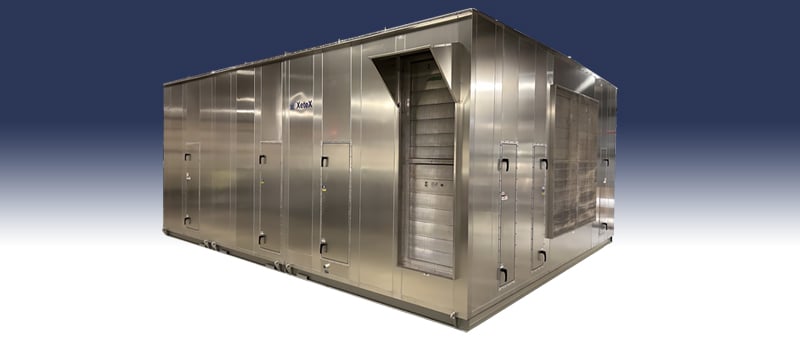

This XeteX custom basis of design energy recovery unit (ERU) for a community center natatorium features a unique three-air tunnel. The corrosion-resistant design includes an all-aluminum construction for long lasting performance; a Heresite-coated air-to-air energy recovery heat pipe for energy efficiency; and epoxy-coated DX coils for heating and cooling.
Let's take a look at the performance and see what's inside.
PERFORMANCE
Model: AVR-RT-BP-DX-HT-FF-RC
Dimensions: 140”H x 325”L x 260”W
Weight: 26,300 lbs
Supply CFM: 40,000 CFM
Energy Recovery: Energy Recovery Heat Pipe
Energy Effectiveness: Winter: 53% / Summer: 29%
Heating Type: DX Coil
Heating Capacity: 1,326 MBH
Cooling Type: DX Coil
Cooling Capacity: 49 Tons
CONSTRUCTION
- Outdoor unit manufactured with three-unit sections
- Thermal break construction with 2” double wall casing and injected foam (R-value 14) insulation
- 0.063 aluminum exterior casing
- 0.063 aluminum interior casing
- 0.080 aluminum floor with 2” injected foam (R-value 14) insulation
- 8” welded structural steel base frame with welded lifting lugs and acrylic paint
- 1/8” aluminum tread floor
- Aluminum drain pan
FEATURES
Energy Efficiency
- Air-to-air energy recovery heat pipe
Corrosion-Resistant Design
- All-Aluminum Construction
- Heresite-coated air-to-air energy recovery heat pipe
- Epoxy-coated DX coils
- Factory mounted controls
- SA/EA Piezo flow rings
- SA/EA fan back draft dampers
COMPONENTS
A. OA 2” MERV 8 filters with aluminum rack
B. SA 4” MERV 13 filters with aluminum rack
C. Heresite-coated air-to-air energy recovery heat pipe
D. Face and bypass damper
E. Epoxy-coated DX coil
F. SA four premium aluminum plenum fans with back draft damper
G. RA aluminum mesh filters with aluminum rack
H. EA four premium aluminum plenum fans with back draft damper
I. Unit splits
Learn more about XeteX custom HVAC solutions with pool / natatorium dehumidification.
