In demanding healthcare environments, reliable HVAC performance is critical through precision climate control and indoor air quality. Learn how XeteX meets these needs for a healthcare center with this custom rooftop unit (RTU) design.
Innovative RTU Features for a Healthcare Center

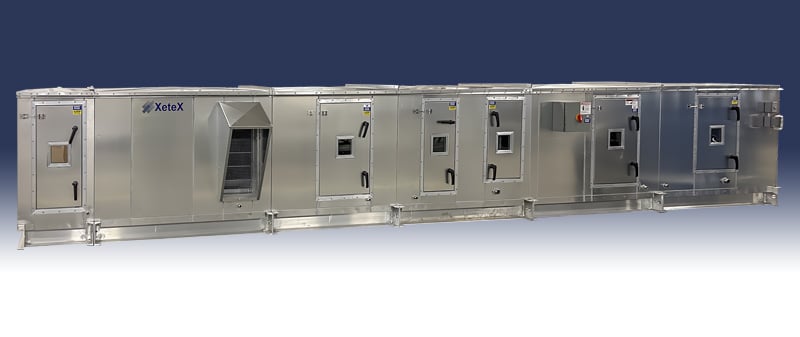

This customized rooftop unit (RTUs) is designed with a six-section split unit layout. The all-aluminum construction with dual internal stainless-steel liner sections provide corrosion resistance for durability and long-lasting performance saving replacement costs.
The inclusion of UV lights helps in sterilizing the air, reducing the risk of airborne infections, and the high-efficiency MERV 14 and MERV 11 filters aid in delivering clean air free from contaminants. The steam humidifier manifold ensures patient comfort and reduces the spread of pathogens.
The unit incorporates both chilled water (CW) and hot water (HW) coils, enhancing its ability to maintain precise temperature control. Aiding in serviceability are HW/CW coil pull racks and two piping vestibules.
Custom RTU Performance
Model: XAH-3000-RT-CW-HW-FF-RC
Dimensions: 53”H x 354”L x 48”W
Weight: 4,800 lbs
Supply CFM: 3,000 CFM
Heating Types: Hot Water Coil and Steam Humidifier Manifold
Heating Capacity: Hot Water Coil: 135 MBH / Humidifier: 49 MBH
Cooling Type: Chilled Water Coil
Cooling Capacity: 138 MBH
Construction
- 2” double wall thermal break construction with injected foam (R-value 14) insulation
- 0.063” aluminum outer casing
- 0.063” aluminum interior casing
- Welded 8” structural aluminum base frame with acrylic paint and extended with lifting lugs
- 0.080 aluminum floor with 2” polyIso foam (R-value 6.0/in) insulation
- Fully welded floors with 2” upturn lip
- Flat drains in each section and seam caps at each split
- 1/8” aluminum tread plate floor
- 304 SS drain pan

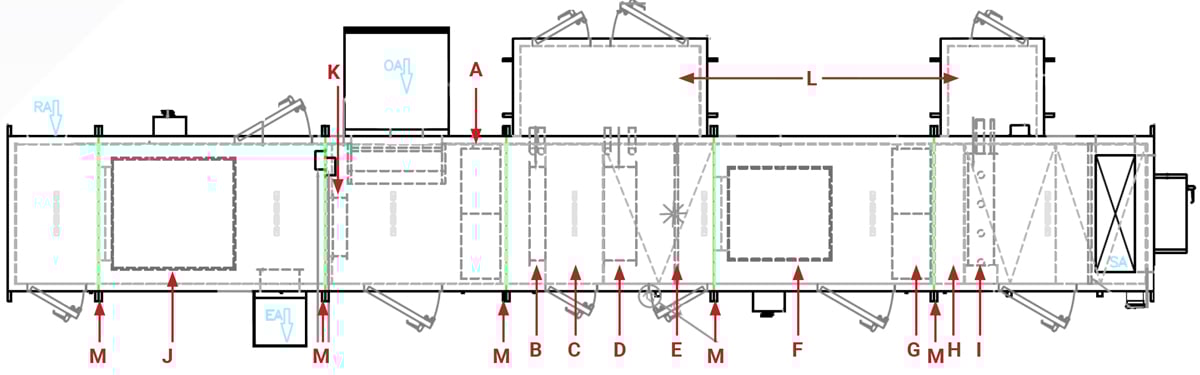

Components
A. OA 12” MERV 11 filters with alum rack
B. Hot water coil with alum coil pull rack
C. Hot water/chilled water coil SS liner section
D. Chilled water coil with alum coil pull rack
E. UV lights
F. SA premium TEFC fan
G. SA 12” MERV 14 filters with alum rack
H. Humidifier SS liner
I. Humidifier manifold
J. EA premium TEFC fan
K. Recirculation damper
L. Vestibules
M. Unit splits
