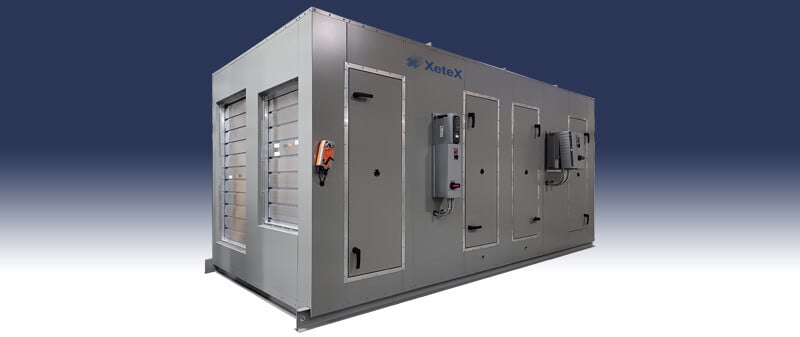

Specifically engineered to meet the rigorous demands of a military barrack, this XeteX custom indoor Energy Recovery Unit (ERU) is outfitted with an epoxy-coated flat plate heat exchanger, which ensures optimal performance and longevity. It also features a face and bypass damper system and damper actuators.
Additionally, the ERU is equipped with premium quality Exhaust Air (EA) and Supply Air (SA) plenum fans, designed to deliver superior airflow efficiency and reliability. To further enhance indoor air quality, the ERU incorporates high-efficiency filters, ensuring that the air circulated within the barracks is clean and free from contaminants, thus providing a healthier and more comfortable environment for its occupants.
Performance
Model: IAQ-12000-BP
Dimensions: 92”H x 200”L x 90”W
Weight: 7,400 lbs
Energy Recovery: Sensible Flat Plate HX
Energy Effectiveness: 78% Winter / 72% Summer
Supply Airflow: 8,677 CFM
Construction
- Indoor unit
- Double wall construction
- 18ga galvaneal exterior with acrylic paint
- 22ga galvanized interior casing with 2” injected foam (R-14) insulation
- 6” structural steel base frame with welded lifting lugs and acrylic paint
- 16ga galvaneal floor with 2” injected foam (R-6.9/in) insulation
- 304 SS drain pan
Features
- Epoxy-coated sensible aluminum flat plate heat exchanger
- Plumbing and electrical chase
- SA and EA premium efficient fans with adjustable V-belt drive, and ODP motors with shaft grounding rings
- SA and EA extended lube lines
- VFDs with electro-mechanical bypass
Components
A. OA damper actuator
B. OA 2” MERV 13 filters
C. Face and bypass damper actuator
D. Face and bypass damper
E. Epoxy-coated aluminum flat plate heat exchanger
F. SA belt driven fan
G. RA 2” MERV 8 filters
H. EA belt driven fan
I. EA damper actuator
J. VFD with bypass
Learn more about XeteX custom Energy Recovery Units!
