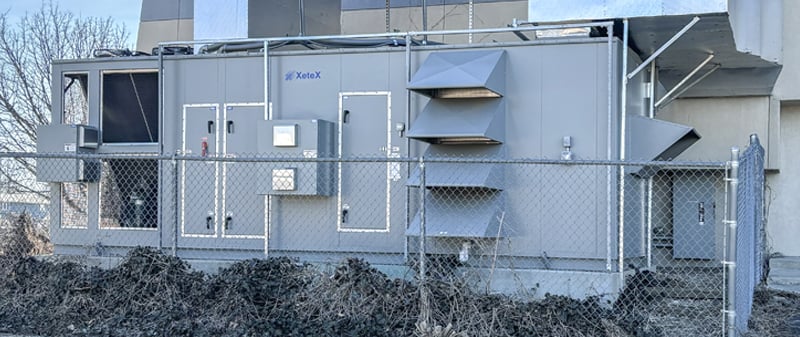

This XeteX custom replacement air handler was given a corrosion resistant design for a natatorium. The unit features an aluminum interior, electrophin-coated DX and HW coils and includes 64 tons packaged refrigeration for 26K CFM.
Let's take a look at performance and see what's inside.
Performance
Model: PXAH-26000-RT-RC-CD-HW-AC
Dimensions: 104”H x 287”L x 120”W
Weight: 15,200 lbs
Supply CFM: 26,000 CFM
Heating Type: HW Coil
Heating Capacity: 2,003 MBH
Cooling Type: DX Coil
Cooling Capacity: 64 Tons
Construction
- Outdoor unit
- 2” double wall casing and injected foam (R-value 14) insulation
- 18ga galvanneal exterior casing with acrylic paint
- Aluminum interior for corrosion resistance
- 0.063 aluminum interior casing
- 0.080 aluminum floor with 2” PolyIso foam (R-value 6.0/in) insulation
- 8” welded structural aluminum base frame with lifting lugs and acrylic paint
- Aluminum drain pan
Features
- Integral air-cooled condensing section with multiple staged compressors and a VFD lead
- Factory mounted controls
- Piezo flow rings

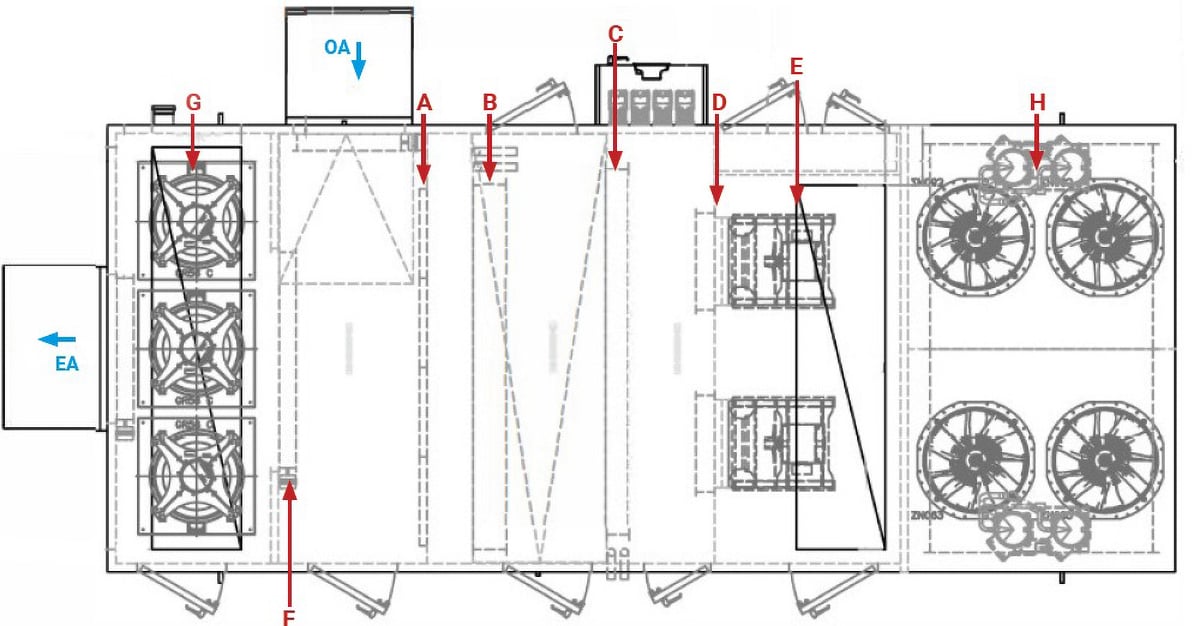

Components
A. OA 2” MERV 8 filters with aluminum rack
B. Electrophin-coated DX coil
C. Electrophin-coated HW coil
D. SA fan back draft damper
E. SA four premium plenum fans
F. Recirc damper
G. EA three premium plenum fans
H. Condensing section
