This XeteX custom replacement RTU has been designed for a hospital. Many unique features include a two-section split construction, 159 tons of packaged DX cooling, hot water coils, and an all aluminum design.
Performance
Model: XAH-45000-RT-DX-HW-FF-RC-AC
Dimensions: 116”H x 724”L x 136”W
Weight: 28,650 lbs
Supply CFM: 45,000 CFM
Heating Type: Hot Water Coil
Heating Capacity: 1,660 MBH
Cooling Type: Air Cooled Condensing DX Coils
Cooling Capacity: 159 Tons
Construction
- Two section split outdoor unit
- Thermal break construction with 2” double wall casing and injected foam (R-value 14/in) insulation
- 0.050” aluminum exterior casing with acrylic paint
- 0.063” aluminum interior casing
- Welded 8” C-Channel structural steel with welded lifting lugs and acrylic paint
- 0.080” aluminum floors with 2” injected foam (R-value 6.9/in) insulation
- Aluminum drain pan
Features
- Integral air cooled section with multiple staged compressors and a VFD lead
- All aluminum design
- SA and EA Fan Piezo flow rings
Components

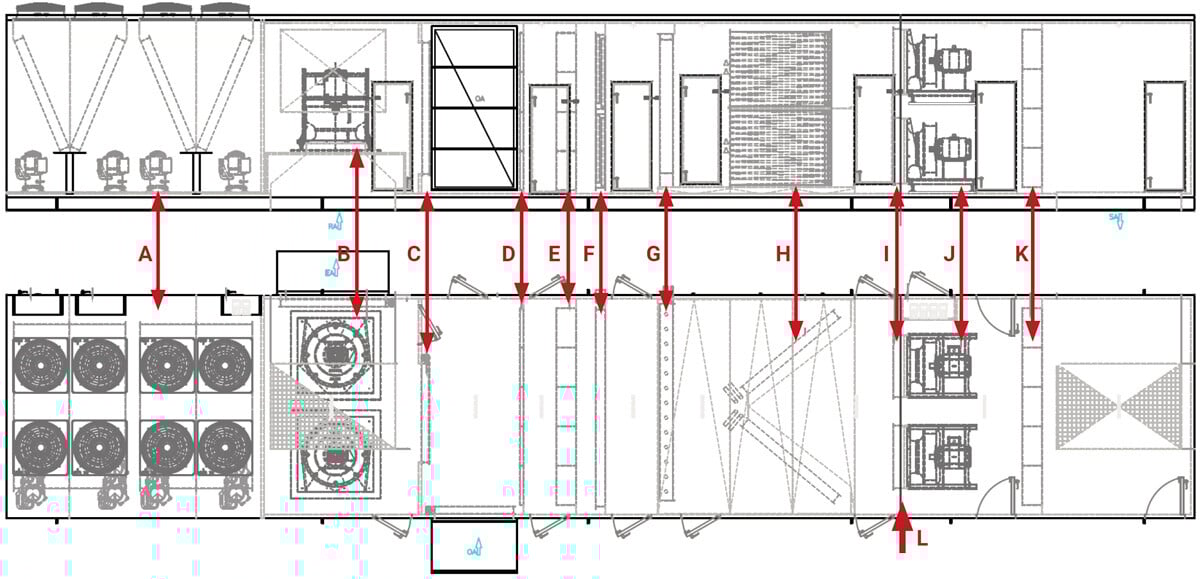

A. Condensing section
B. EA premium two fan array
C. SA recirculation damper
D. OA 2” MERV 8 alum. rack
E. SA 12” MERV 15 alum. rack
F. Hot water coils
G. Humidifyer manifold
H. DX cooling coils
I. Backdraft damper
J. SA premium four fan array
K. SA 12” HEPA alum. rack
L. Section split
