This XeteX project showcases one of two custom rooftop units for a commercial building in a historic casino town. Unique performance features include 100 tons of packaged DX cooling, as well as split unit construction, and a weight savings and sound absorption design.
Performance
Model: XAH-42000-RT-RC-DX-HI-BP-AC
Dimensions: 103”H x 546”L x 101”W
Weight: 20,800 lbs
Supply CFM: 42,000 CFM
Heating Type: Indirect Gas Fired Furnace
Heating Capacity: 804 MBH
Cooling Type: Packaged DX Coil
Cooling Capacity: 100 Tons
Performance
- Outdoor unit; two section split unit
- 2” double wall thermal break construction with injection foam (R-value 14/in) insulation
- 20ga galvanneal outer casing with acrylic paint
- 0.063” aluminum interior casing selected for weight savings design
- 8” structural steel base frame with welded lifting lugs and acrylic paint
- .080” aluminum unit floor with 2” injected foam (R- 6.9/in) insulation
- 304 SS drain pan
Features
- Integral air cooled section with multiple staged compressors and VFD lead
- Factory mounted Carel DDC controller programmed for full unit control
- 20ga Perf. Liner in SA fan compartment
- SA PIEZO flow rings and fan backdraft damper

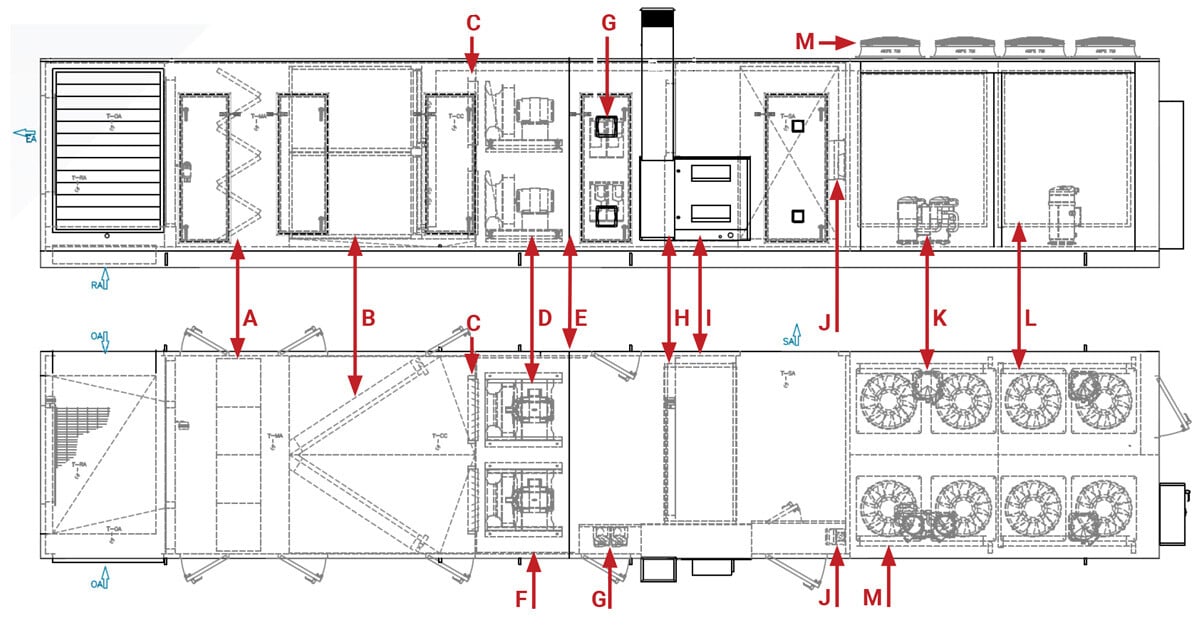

Components
A. 2” MERV 8 galv. filter rack
B. DX evaporator coils
C. SA fan backdraft damper
D. SA premium four-fan array
E. Unit split
F. Perf liner in SA section
G. SA blower VFDs
H. Heater bypass damper
I. SS indirect gas fired furnace with modulating valve (10-to-1)
J. Compressor VFD
K. Compressor
L. Condensing coils
M. Condensing fans
