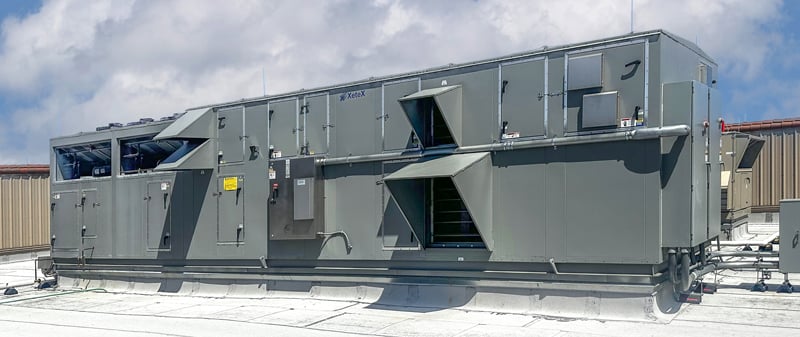

This XeteX custom rooftop unit (RTU) with desiccant dehumidification was designed specifically for the critical needs of a surgical center.
This custom rooftop unit features 100 tons packaged DX refrigeration, a high capacity active regen desiccant wheel, a steam humidifier manifold, two open coil electric heaters (SA/Regen), and provides extra dry and cool filtered air for energy efficient climate control and indoor air quality.
PERFORMANCE
Model: ARU-1950-RT-RC-CD-HE-FF-AC
Dimensions: 108”H x 480”L x 136”W
Weight: 31,500 lbs
Supply CFM: 18,000 CFM
Energy Recovery: Regen Desiccant Wheel
Energy Effectiveness: Moisture Removal: 412 lbs/hr
Heating Types and Capacities: Electric Heater: 80KW
Regen Electric Heater: 316KW
Steam Humidifier Manifold: 141lbs/hr
Cooling Type: DX Evaporator Coil
Cooling Capacity: 100 Tons (4 ckts)
Dry Bulb/Wet Bulb: LAT 70F DB / 65F WB
CONSTRUCTION
- Outdoor thermal break construction; one section
- 2” double wall casing; injected foam (R-value 14) insulation
- 18ga galvanneal exterior casing with acrylic paint
- 20ga galvanized interior casing
- 8” structural steel base frame with welded lifting lugs and acrylic paint
- 16ga galv. floors with 2” injected foam (R-value 14) insulation
- 304 SS drain pan
FEATURES
- Factory controls
- Integral air-cooled section with multiple staged compressors and VFD lead
- High capacity active regen desiccant wheel with purge section
- Steam humidifier manifold
- Electric generator
- Low ambient kit
- SA/RA premium four fan arrays include piezo flow rings and a redundant fan for full CFM
with three fans

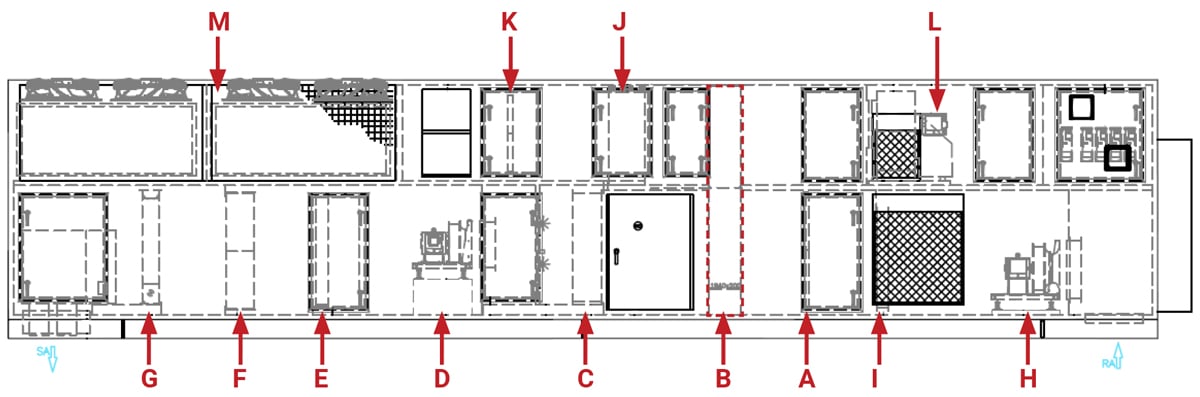

COMPONENTS
A. OA 2” MERV 8 filters
B. Regen energy wheel
C. Evaporator (DX) coil
D. SA premium four fan array
E. Open coil electric heater (SA)
F. SA 2” MERV 8 filters
G. Steam humidifier manifold
H. RA premium four fan array
I. Recirc damper
J. Open coil electric heater (Regen)
K. Regen 12” MERV 8 filters
L. Regen fan
M. Condensing section
