Large DOAS with Enthalpy Wheels and 67K CFM for Office Complex

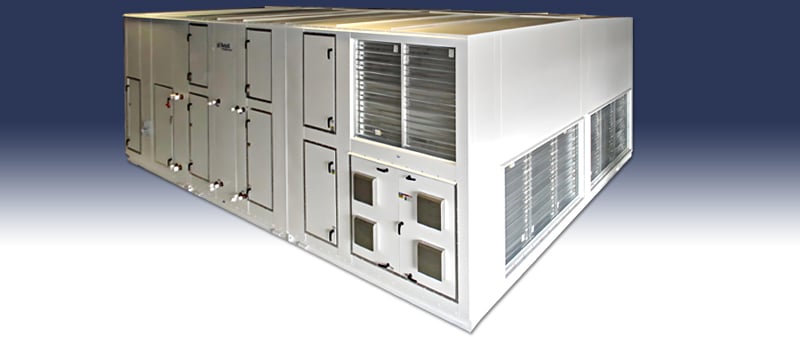

Instead of multiple air handling units, XeteX designed the heating, cooling, and humidity control in one custom Dedicated Outdoor Air System (DOAS) unit to condition an entire office facility. Custom DOAS with dual enthalpy wheels

This XeteX extra-large custom DOAS features dual parallel energy recovery enthalpy wheels to provide 70% energy effectiveness with low cross contamination, plenty of filtration for indoor air quality, and hydronic coils with 67K CFM.

Custom DOAS Performance

Model: AHR-3400-RT-CW-HW
Height: 148 in
Width: 274 in
Length: 408 in
Weight: 42,200 lbs
Energy Recovery: Dual 3A Enthalpy Wheels
Effectiveness: 70%
Supply CFM: 67,000 CFM
Cooling Capacity: 1,167 MBH
Heating Capacity: 3,199 MBH

Split section showing the dual energy recovery wheels

Split section showing the dual energy recovery wheels.

Construction

  • Three-section split unit for transport and install
  • Double wall construction with 2" mineral wool (R-value 4.0/in) insulation
    • 20ga galvanneal exterior casing with custom acrylic paint
    • 18ga galvanized interior casing
  • Welded 8" structural steel base frame with welded lifting lugs

Other Features

  • Electrical SCCR: 65 kAIC
  • Factory mounted full unit controls
  • Fused disconnect

Custom DOAS Components

A. 2" MERV 13 OA pre filters

B. Dual 3Å desiccant wheels with low cross-contaminating seal system and purge sector

C. Chilled water-cooling coil

D. Hot water heating coil

E. SA four premium fan array

F. Split section

G. 2" MERV 8 RA filters

H. EA four premium fan array

Extra-Large-DOAS-drawing
