Natatorium Air Handling Replacement Unit

This XeteX project features two large outdoor air handling replacement units for an indoor aquatic recreation center.

XeteX custom engineers and manufactures natatorium dehumidification air handling systems. Many factors go into natatorium design, such as delivering healthier, more comfortable environments for indoor pool occupants for climate comfort and indoor air quality; finding ways to minimize operational costs through the use of energy recovery technologies and selecting corrosion resistant materials for long-lasting performance, and design features that protect the building structure.

XeteX employs energy recovery ventilation using sensible flat plate heat exchanger technology. Incoming fresh air is pre-condition and is further heated or cooled to meet supply air requirements. This approach helps reduce operational costs when comparing with standard mechanical dehumidification pool systems.

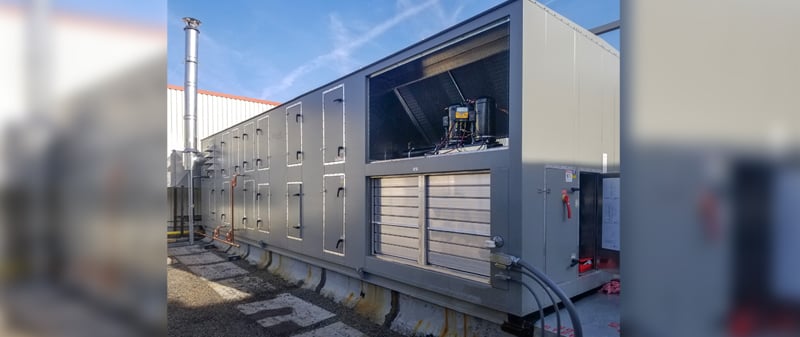

XeteX replacement natatorium AHU

In addition to these factors, Xetex engineers worked closely with our local rep to design replacement units that retrofit the existing mechanical and structural requirements.

Unit Highlights

  • Outdoor units with 2" double wall thermal break casing insulated with injected foam
    • 18-gauge galvanized exterior
    • 16-gauge corrosion resistant aluminum interior
  • XLT epoxy coated aluminum flat plate heat exchanger to enhance longevity and resistance to corrosion
  • 43 tons of air-cooled condensing with lead Digital Scroll compressors to produce
  • 2200 MBH indirect fired gas heater made with 304 stainless steel
  • epoxy coated DX coil which plays a crucial role in the dehumidification process
  • Low leakage, aluminum dampers
  • 2" MERV-8 outside filters and 2" aluminum mesh return air filters

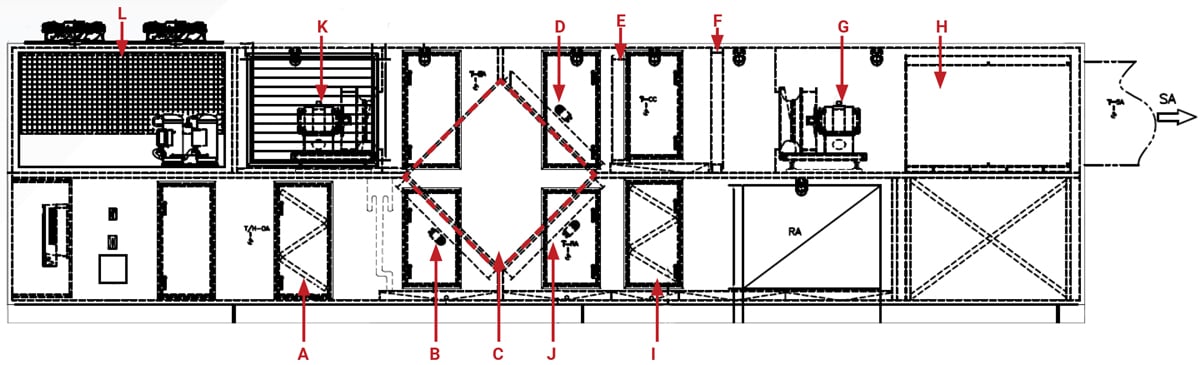

XeteX replacement natatorium AHU drawing

With these exceptional features and state-of-the-art technologies, the XeteX replacement units not only meet the existing structural requirements of the building but provide improved indoor air quality and energy efficiency. These units make a reliable and long-lasting solution for this natatorium environment and ensures the health and wellbeing of occupants, spectators, and the building structure.
