Discover how this AVENTUS semi-custom split Dedicated Outdoor Air System (DOAS) is an energy efficient solution for a high school locker room.

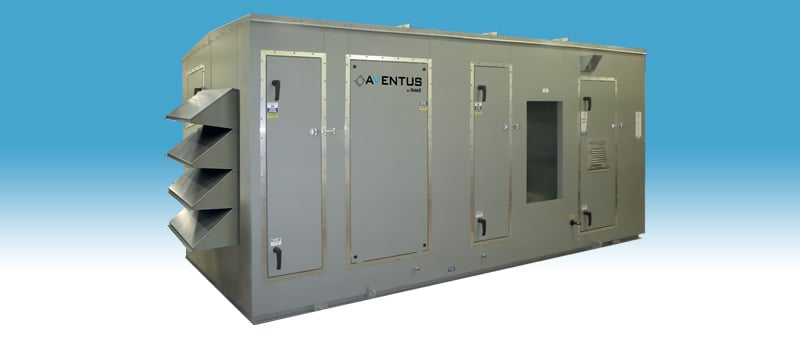

AVENTUS designed and manufactured this semi-custom split system DOAS for a high school locker room. Featuring 100% outdoor air, an aluminum sensible crossflow flat plate heat exchanger, indirect fired gas furnace, and high-efficiency filters, the system provides quality ventilation, indoor air quality, and energy efficient heating and humidity control.
Semi-Custom Split DOAS Performance
Model: ERU-1A
Dimensions: 62”H x 178”L x 63”W
Weight: 3,200 lbs
Supply CFM: 2,400 CFM
Energy Recovery: Sensible Crossflow Plate HX
Energy Effectiveness: Winter: 66% / Summer 64%
Heating Type: Indirect Fired Gas Furnace
Heating Capacity: 142 MBH
Construction
- Outdoor unit
- 2” double wall casing and polyIso foam (R-value 6.0/in) insulation
- 20ga galvanneal steel outer casing with acrylic paint
- 20ga galvanized steel interior casing
- 5” c-channel structural steel base frame with welded lifting lugs and acrylic paint
- 16ga galvanized steel floor with 2” polyIso foam (R-value 6.0/in) insulation
- 304 stainless steel drain pan
Features
- Sensible aluminum crossflow plate heat exchanger
- Modulating bypass damper and actuator
- Full unit controls with BACnet MS/TP
- SA/EA EC fan motors with rubber in shear vibration isolators

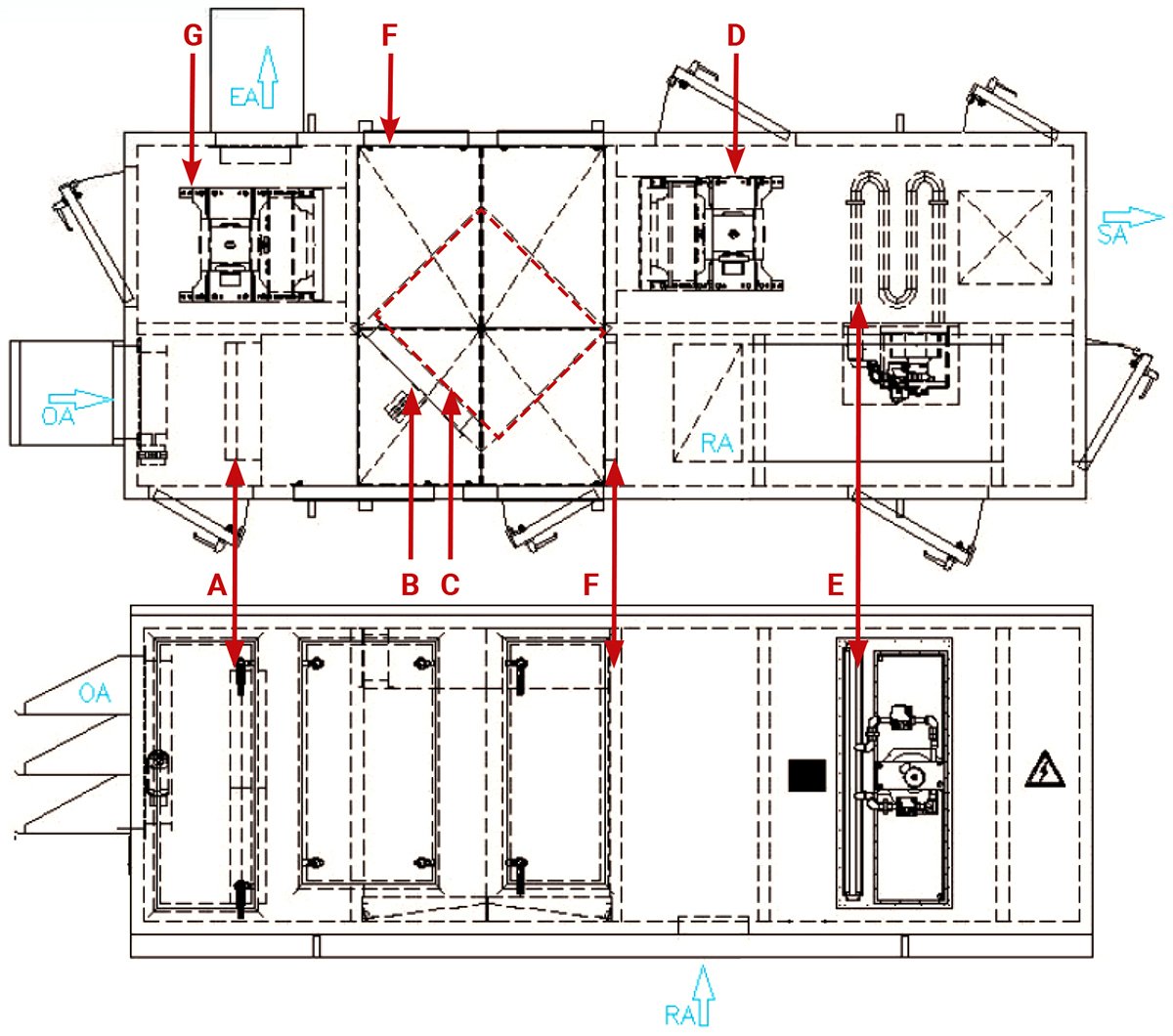

Semi-Custom Split DOAS Components
A. OA 2” MERV 8 filter galvanized filter rack
B. Modulating crossflow bypass damper with actuator
C. Aluminum crossflow plate heat exchanger
D. SA plenum fan
E. 409 stainless steel indirect fired gas furnace
F. RA 2” MERV 8 filter galvanized filter rack
G. EA plenum fan
AVENTUS Semi-Custom Split DOAS Benefits
Ventilation
A high school locker room needs good ventilation and this semi-custom AVENTUS split-system DOAS is an effective HVAC solution. By utilizing energy recovery ventilation through a sensible flat plate heat exchanger with a modulating bypass damper and actuator to draw 100% fresh outdoor air without recirculating contaminants or odors within the space.
Indoor air quality
Combining 100% fresh outdoor air with high-efficiency filters at the OA and RA effectively capture dust, pollen, and other airborne particles and contribute to a healthier environment. The indoor air quality this semi-custom AVENTUS split-system DOAS brings fosters a healthier and more comfortable environment for students and staff, which can enhance overall well-being and performance.
Reducing costs
By utilizing an aluminum sensible crossflow flat plate heat exchanger, the incoming fresh air (outdoor air) is preconditioned by the conditioned outgoing air (exhaust air) without air stream contamination. Energy recovery translates to energy savings, which is important for schools operating within tight budgets. By using energy recovery ventilation, schools reduce energy consumption and can also reduce their carbon footprint.
